Protein Gel Combs for the MPX™ Blotting System

These protein gel combs are designed and optimized for use with polyacrylamide protein gels. The combs come in four configurations for analysis of one, two, three, or four samples.

Each comb includes one marker lane for easy identification. Use these combs with the MPX (Multiplex) Blotting System.

Protein Gel Comb Specifications

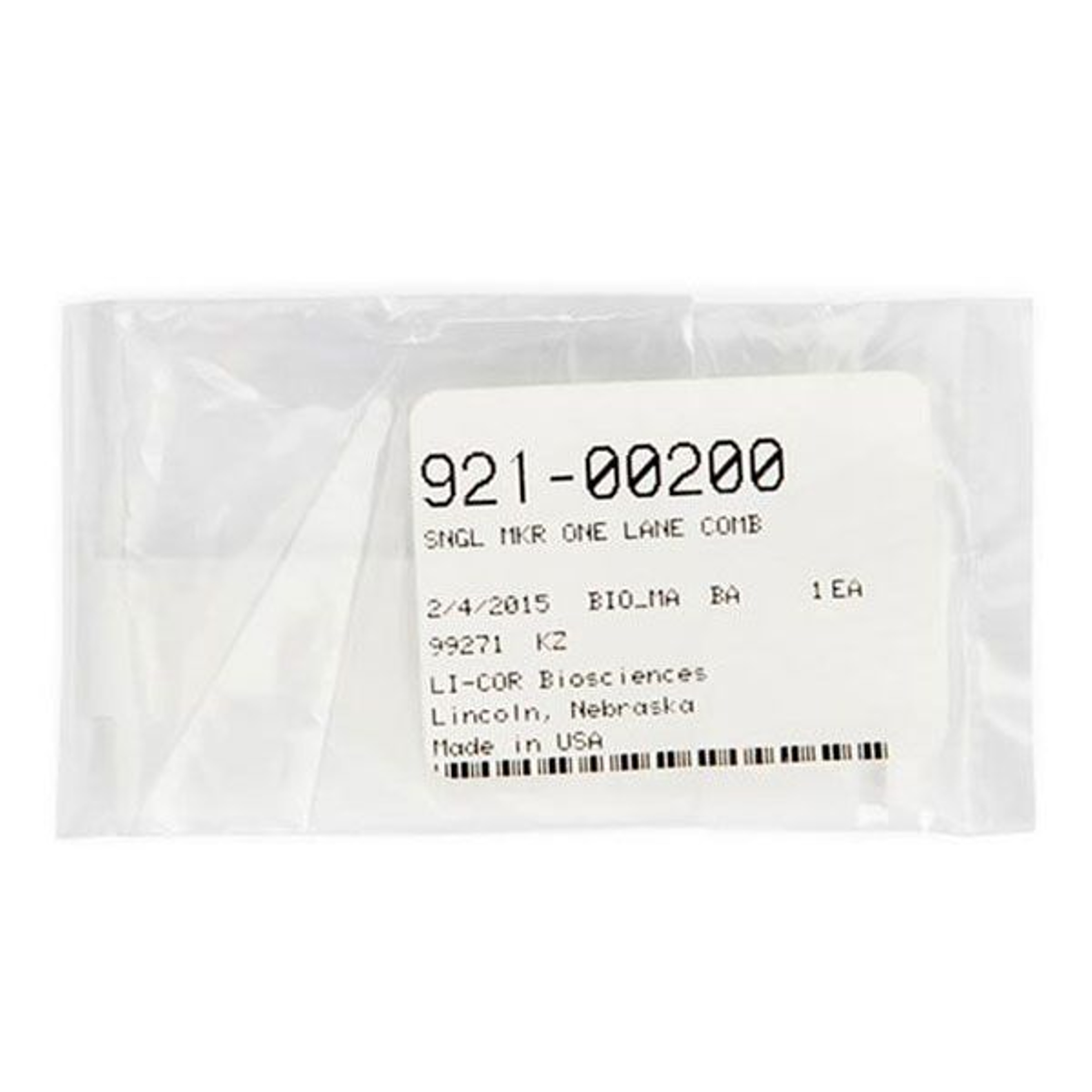

One Sample Well plus One Marker Lane Comb

Comb thickness: 1 mm

Well loading volume recommendation:

• Marker well: 3 – 15 µL
• 1 Sample well: 100 – 500 µL

Two Sample Wells plus One Marker Lane Comb

Comb thickness: 1 mm

Well loading volume recommendation:

• Marker well: 3 – 15 µL
• 2 Sample wells: 20 – 225 µL

Three Sample Wells plus One Marker Lane Comb

Comb thickness: 1 mm

Well loading volume recommendation:

• Marker well: 3 – 15 µL
• 3 Sample wells: 5 – 150 µL

Four Sample Wells plus One Marker Lane Comb

Comb thickness: 1 mm

Well loading volume recommendation:

• Marker well: 3 – 15 µL
• 4 Sample wells: 5 – 100 µL
